Manual Compact Shelving
The Manual Compact shelving is easy to shake and flexible, has a strong load capacity, has a standardized phosphating process, is electrostatically matte sprayed, has a beautiful appearance, is well rust-resistant, and has easy and noiseless crank operation. When the rack is pushed or pulled, the crank component will not rotate with it.
Description
The Manual Compact shelving is easy to shake and flexible, has a strong load capacity, has a standardized phosphating process, is electrostatically matte sprayed, has a beautiful appearance, is well rust-resistant, and has easy and noiseless crank operation. When the rack is pushed or pulled, the crank component will not rotate with it. It has an independent stop device and a locking device after the group is closed, as well as a dust and rodent-proof device. It has a large storage capacity, high space utilization, and the inner layer height can be adjusted by itself.
Product Details
Haihe Manual Compact shelving is a new type of archive storage equipment developed by Bai based on the latest design ideas of foreign compact shelving and combined with my country's national conditions. It overcomes the shortcomings of traditional compact shelving structure in principle. Each component is carefully designed and manufactured. It is an excellent product that can truly go global.
The selection, use and craftsmanship of materials are very sophisticated. High-quality cold-rolled steel plates are selected. The steel density of columns, hanging plates, side plates, and chassis exceeds the ordinary standard by more than 20%, reaching or exceeding the highest national industry standards. It is one of the highest quality professional tools for storing archives in China, and it is also the best choice for the centralized storage of large archives.
Haihe luxury compact shelving uses a whole piece of cleverly designed side plate instead of a column; it uses a white or black disc and a hand crank, and only two fingers can be used to rotate the entire compact shelving. It is light and flexible, and is widely used in various government agencies, factories, mines, colleges, hospitals, scientific research and other departments. The drive mode is divided into: electric and manual.
Product Specification
|
List of Specifications for Manual Compact shelving |
|
|
Category |
Manual type/mechanical rotary table type |
|
Materials |
High-quality cold-rolled steel plate Q235 |
|
Surface coating |
Electrostatic spray coating |
|
Size |
Width: 900+47+116mm |
|
Height: 2345mm |
|
|
Depth: 510-560mm |
|
|
Shelf size |
851×272(247)×2×23mm |
|
Number of shelves |
6 layers/columns |
|
Load-bearing capacity of the shelf board |
Reinforced movable layer board: D550mm/85kg; D275mm/50kg |
|
Number of railway tracks |
1-3 in a row: 2 pieces; 4-5 in a row: 3 pieces; 6 pieces in a row: 4 pieces |
|
Channel size |
600-900mm |
|
Pillar |
The "U" -shaped pillar is connected with 26mm row holes on both sides |
|
Anti-collision rubber pad |
Natural rubber with a diameter of 30×16mm |
|
Railway track |
20mm solid square steel is adopted |
|
Pulley |
Cast pig iron, with an anti-rust coating on the surface |
|
Load |
1000kg/ pulley |
Application Environment
About Us

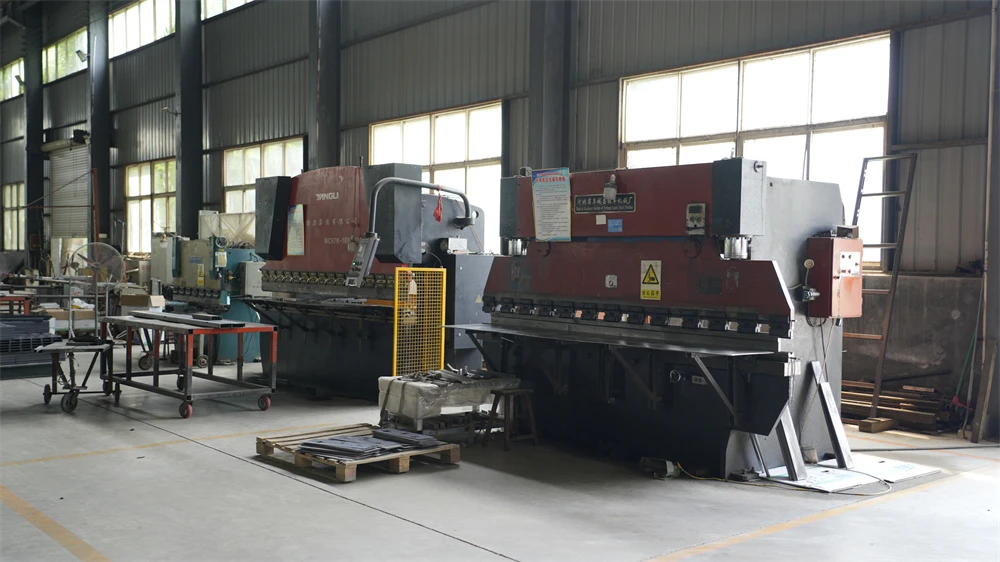

Production Workshop
